PVC Electrical Tape: The Ultimate Guide

PVC electrical tape is a widely used electrical insulation material that is made from polyvinyl chloride (PVC). This type of tape is known for its durability, flexibility, and resistance to moisture and chemicals. It is commonly used in electrical wiring applications to insulate and protect wires and cables from damage and corrosion.

A roll of PVC electrical tape unravels, wrapping around a bundle of wires with precision

One of the main advantages of PVC electrical tape is its ability to withstand high temperatures and extreme weather conditions. This makes it ideal for use in outdoor applications, such as electrical wiring for outdoor lighting, and in industrial settings where machinery and equipment are exposed to harsh conditions. PVC electrical tape is also resistant to UV radiation, which makes it suitable for use in applications where exposure to sunlight is unavoidable.

Overall, PVC electrical tape is a reliable and cost-effective solution for electrical insulation needs. Its versatility and durability make it a popular choice in a variety of industries, including construction, automotive, and electronics. With its ability to withstand harsh environments and protect against damage, PVC electrical tape is a valuable tool for ensuring the safety and longevity of electrical systems.

History of PVC Electrical Tape

A roll of PVC electrical tape stands on a workbench, surrounded by tools and spools of wire. The tape is unrolled and wrapped around a wire, showing its use in electrical work

PVC electrical tape has been around for over 70 years and has become a staple in the electrical industry. It was first invented in the 1940s by the 3M Company and was used primarily for insulation purposes. The tape was made of polyvinyl chloride (PVC) and a rubber-based adhesive, which made it ideal for electrical applications.

In the early days, PVC electrical tape was only available in black. However, as the demand for the product grew, manufacturers started producing tapes in different colors to help with identification and organization of wires. Today, PVC electrical tape is available in a wide range of colors, including red, blue, green, yellow, and white.

Over the years, the quality of PVC electrical tape has improved significantly. Modern PVC electrical tape is made with higher quality materials and has better adhesive properties, making it more durable and reliable. In addition, manufacturers have developed specialized tapes that are designed for specific applications, such as high voltage or extreme temperatures.

PVC electrical tape has become an essential tool for electricians and DIY enthusiasts alike. It is used to insulate wires, mark circuits, and provide a protective barrier against moisture and dust. Its versatility and ease of use have made it a popular choice for a wide range of electrical applications.

Overall, the history of PVC electrical tape is a testament to the ingenuity and innovation of the electrical industry. As technology continues to evolve, we can expect to see further advancements in the design and functionality of this essential tool.

Material Properties

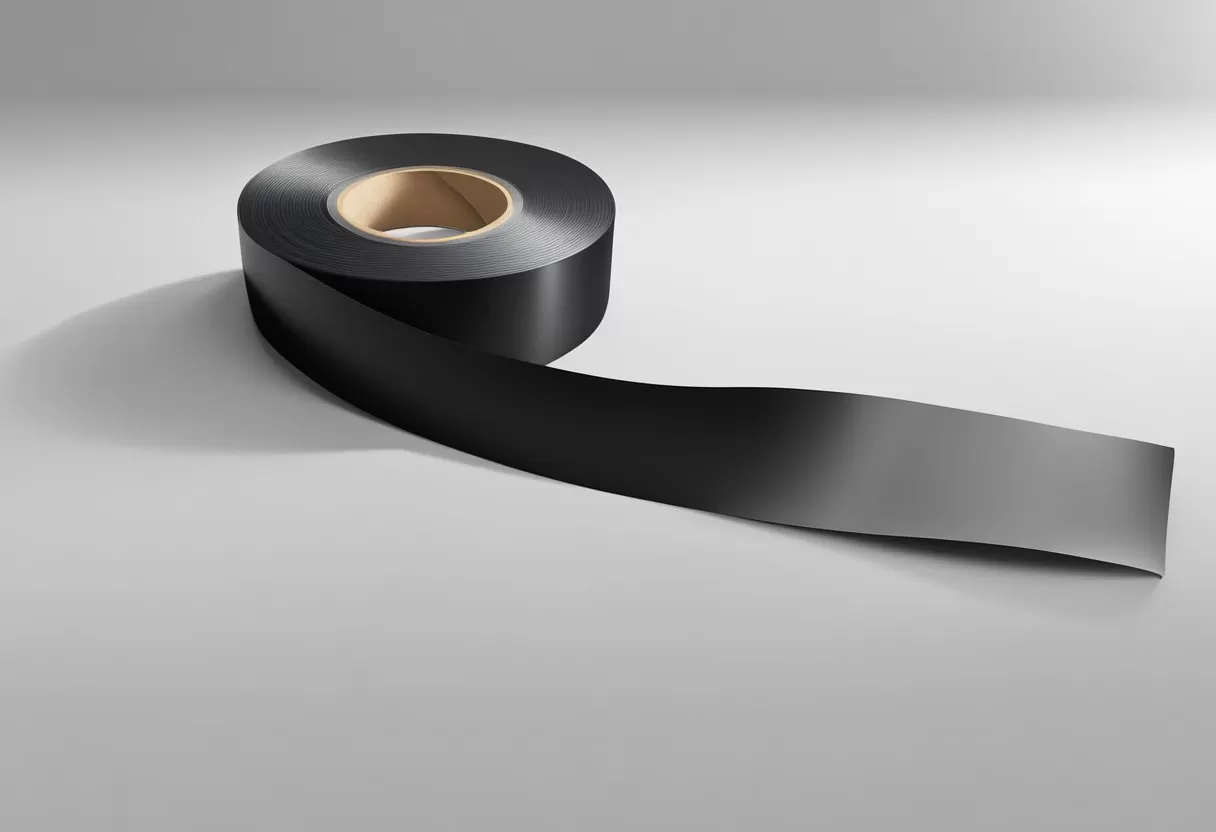

A roll of black PVC electrical tape sits on a clean, white surface, its shiny surface catching the light. The tape is smooth and flexible, with a slight stretch when pulled

PVC electrical tape is made of a polyvinyl chloride film coated with a rubber-based adhesive. This combination provides the tape with several desirable properties that make it a popular choice for electrical insulation and bundling applications.

One of the key properties of PVC electrical tape is its excellent electrical insulation properties. The tape is capable of withstanding high voltages and provides a reliable barrier against electrical current. This makes it ideal for use in electrical wiring applications where insulation is critical.

In addition to its electrical insulation properties, PVC electrical tape is also highly resistant to moisture and chemicals. This makes it suitable for use in harsh environments where exposure to moisture, chemicals, and other corrosive substances is common.

PVC electrical tape is also highly flexible and conformable, which makes it easy to apply and wrap around irregularly shaped objects. This flexibility also allows the tape to conform to the contours of the surface it is applied to, creating a tight and secure seal.

Overall, PVC electrical tape is a versatile and reliable material that provides excellent insulation and protection in a wide range of electrical applications. Its combination of electrical insulation properties, resistance to moisture and chemicals, and flexibility make it an ideal choice for both professional and DIY electrical projects.

Manufacturing Process

Machines coat and cut PVC film into electrical tape rolls

Raw Materials

The primary raw material used in the manufacturing of PVC electrical tape is polyvinyl chloride (PVC) resin. Other materials used include plasticizers, stabilizers, pigments, and fillers. The choice of raw materials depends on the desired properties of the final product. For example, plasticizers are added to improve flexibility, while stabilizers are added to prevent degradation due to heat and light exposure.

Production Techniques

The manufacturing process of PVC electrical tape involves several steps. First, the raw materials are mixed together in a high-speed mixer. The mixture is then fed into an extruder, where it is melted and formed into a continuous sheet. The sheet is then cooled and cut into the desired width and length.

After cutting, the tape is subjected to a corona treatment, which increases its surface energy and improves its adhesion properties. The tape is then coated with an adhesive, which can be either rubber-based or acrylic-based. The adhesive is applied using a coating machine, and the tape is wound onto a spool.

Finally, the spooled tape is subjected to quality control tests to ensure that it meets the required specifications. These tests include measuring the thickness, width, and length of the tape, as well as testing its adhesion and electrical properties.

Overall, the manufacturing process of PVC electrical tape is a complex and highly controlled process that requires expertise and attention to detail. By carefully selecting the raw materials and using advanced production techniques, manufacturers are able to produce high-quality tape that meets the needs of a wide range of applications.

Types of PVC Electrical Tape

Vinyl Electrical Tape

Vinyl electrical tape is a popular choice for electrical insulation and protection due to its high durability and resistance to moisture, abrasion, and corrosion. It is made from a PVC backing with a rubber-based adhesive, which provides excellent adhesion to a variety of surfaces. Vinyl electrical tape is available in various colors and thicknesses, making it suitable for a wide range of applications.

Rubber-Based Adhesive Tape

Rubber-based adhesive tape is another type of PVC electrical tape that is commonly used in electrical applications. It is made with a rubber-based adhesive that provides excellent adhesion to a variety of surfaces, including metal, plastic, and rubber. This type of tape is also resistant to moisture, abrasion, and corrosion, making it suitable for use in harsh environments.

Flame Retardant Tape

Flame retardant tape is a specialized type of PVC electrical tape that is designed to resist flames and prevent the spread of fire. It is made with a special adhesive that is resistant to high temperatures and flames, making it ideal for use in applications where fire safety is a concern. Flame retardant tape is available in various colors and thicknesses, making it suitable for a wide range of applications.

Overall, PVC electrical tape is a versatile and reliable solution for electrical insulation and protection. With its wide range of colors, thicknesses, and adhesive types, it can be used in a variety of applications, from general-purpose electrical work to specialized industrial applications.

Applications and Uses

Electrical Insulation

PVC electrical tape is commonly used for electrical insulation purposes. It provides an effective barrier between conductive materials, preventing electrical current from flowing where it should not. This makes it an essential tool for electricians and other professionals who work with electrical systems.

Cable Bundling

Another common use for PVC electrical tape is cable bundling. It can be used to hold together multiple cables, preventing them from becoming tangled or damaged. This is particularly useful in situations where cables need to be organized and kept neat, such as in data centers or server rooms.

Color Coding

PVC electrical tape is also commonly used for color coding. Different colors can be used to identify different circuits or wires, making it easier to troubleshoot problems or make changes to an electrical system. This is especially useful in large, complex systems where keeping track of individual wires can be difficult.

Overall, PVC electrical tape is a versatile and essential tool for anyone working with electrical systems. Its ability to provide effective insulation, bundle cables, and color code wires makes it an invaluable asset in a variety of settings.

Quality Standards

IEC Standards

The International Electrotechnical Commission (IEC) has established standards for PVC electrical tapes to ensure their safety and efficacy. These standards cover aspects such as electrical insulation, mechanical strength, and resistance to temperature and humidity. PVC electrical tapes that meet IEC standards are considered reliable and safe for use in electrical applications.

ASTM Standards

The American Society for Testing and Materials (ASTM) has also developed standards for PVC electrical tapes. These standards cover aspects such as adhesion, elongation, and tensile strength. PVC electrical tapes that meet ASTM standards are considered to be of high quality and reliable.

When choosing a PVC electrical tape, it is important to ensure that it meets the relevant IEC or ASTM standards. This will help to ensure the safety and effectiveness of the tape in electrical applications.

It is also important to note that not all PVC electrical tapes are created equal. Some manufacturers may claim that their tape meets certain standards when it does not. Therefore, it is important to purchase PVC electrical tape from a reputable supplier who can provide documentation to prove that the tape meets the relevant standards.
